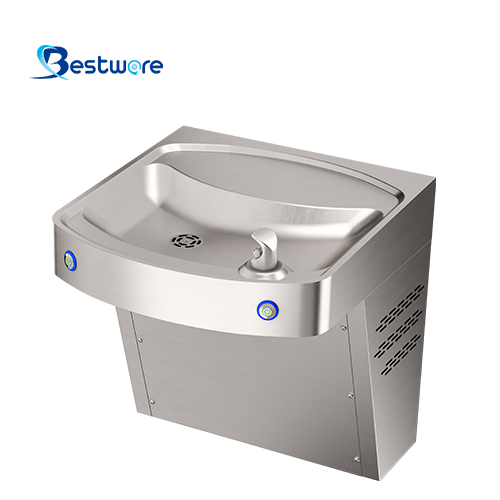

This wall-mounted stainless steel drinking fountain features a compact design, ideal for modern public spaces. Made of 100% food-grade 304 stainless steel, it is lead-free, corrosion-resistant, and highly durable. Dual electronic touch buttons on both sides provide convenient and intuitive operation—touch to start and touch again to stop. A precision flow control system ensures stable water output even under fluctuating pressure. The concealed adjustment valve allows flexible on-site height control for enhanced user comfort. It is well-suited for high-traffic areas such as schools, hospitals, office buildings, and transportation hubs.
| Model No. | FONTCL2MSB |
| Style | Single-function |
| Body Mount | Wall Mount |
| Hole Size | Backplate Mounting Holes (3×Ø8 mm holes, evenly spaced over 260 mm) Wall Mounting Holes (4×Ø10 mm, 409 mm horizontal spacing, 250 mm vertical spacing) |
| Product Size | 454*476*473 mm |
| Body Material | SUS304 |
| Valve Core Type | Solenoid Valve Core |
| EMI Level | 10V/m |
| Power Supply Mode | Main Power Supply |
| Nozzle Material | SUS304 |
| Water Flow Height | Adjustable |
| Switching Mechanism | Dual-button Press Control, Press for Dispensing, Press Again for Shut-off |
| Water Cutoff Protection | Yes |
| Waterproof Rating | IP68 |
| Temperature Max | 95 ℃ (203 °F), Typical Operating Environment for Chilled or Ambient Water 0℃ (32°F) ~ 45°C (113°F) Only. |
| Pressure Max | 2.5 Mpa (25 Bar) |
| Life Span of Valve Core | 1,000,000+ Cycles |
1. 100% food-grade SUS304
2. Lead-free / corrosion-resistant / durable / recyclable
3. Meets sustainable development standards
1. 0.2s sensor-activated water flow
2. Tested for over 1,000,000 switch cycles
1. 10V/m EMI-resistant (stronger than 3V/m in the market)
1. Electronic touch buttons operation, positioned on both sides to suit different user habits and ensure easy operation
2. Touch for dispensing, touch again for shut-off
