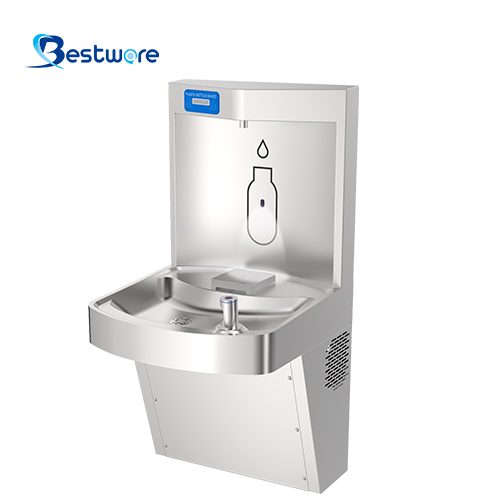

This intelligent sensor drinking fountain features a wall-mounted integrated design with a compact structure, combining direct drinking and bottle filling functions for high-traffic public environments. Made of 100% food-grade 304 stainless steel, it is lead-free, corrosion-resistant, and highly durable. The drinking area uses proximity infrared sensing—water activates when hands approach and stops when removed, ensuring fully touchless operation—while the filling area includes a sensor with position indicator, automatically dispensing when a container is placed and stopping upon removal to enhance efficiency. Equipped with 10V/m anti-interference technology, it delivers faster response at just 0.2 seconds compared to standard 3V/m systems, with a valve life of up to 1 million cycles. A precision flow control system and concealed adjustment valve ensure stable water output and flexible height adjustment. If unused for 24 hours, it automatically flushes for 5 seconds to maintain long-term water hygiene.
| Model No. | BFSCLSBM |
| Style | Dual-function |
| Body Mount | Wall Mount |
| Hole Size | Backplate Mounting Holes: (2 backplates, each with 3×Ø8 mm holes, evenly spaced over 260 mm; center distance between plates: 382 mm) Wall Mounting Holes: (4×Ø10 mm, 409 mm horizontal spacing, 250 mm vertical spacing) |
| Product Size | 454*476*850 mm |
| Body Material | SUS304 |
| Valve Core Type | Solenoid Valve Core |
| EMI Level | 10V/m |
| Power Supply Mode | Main Power Supply |
| Nozzle Material | SUS304 |
| Water Flow Height | Adjustable |
| Switching Mechanism | Drinking Bubbler (Touchless, Hand Wave Sensor Activation and Deactivation) Bottle Filler (Touchless Activation, Automatic Shut-off Upon Removal) |
| Water Cutoff Protection | Yes |
| Waterproof Rating | IP68 |
| Temperature Max | 95 ℃ (203 °F), Typical Operating Environment for Chilled or Ambient Water 0℃ (32°F) ~ 45°C (113°F) Only. |
| Pressure Max | 2.5 Mpa (25 Bar) |
| Life Span of Valve Core | 1,000,000+ Cycles |
1. 100% food-grade SUS304
2. Lead-free / corrosion-resistant / durable / recyclable
3. Meets sustainable development standards
1. 0.2s sensor-activated water flow
2. Tested for over 1,000,000 switch cycles
1. 10V/m EMI-resistant (stronger than 3V/m in the market)
1. Drinking bubbler (touchless, hand wave sensor activation and deactivation)
2. Bottle filler (touchless activation, automatic shut-off upon removal)
1. Provides visual guidance for correct container placement, improving accuracy and user experience
1. Both functions are optional
