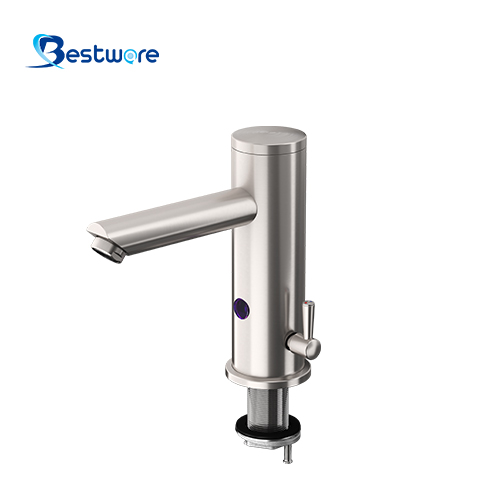

This manual temperature control sensor faucet features a sleek cylindrical design combined with a single-lever manual adjustment, offering intuitive and flexible operation for both commercial and residential applications. Made of 100% food-grade 304 stainless steel, it ensures lead-free safety, excellent corrosion resistance, oxidation resistance, and high strength. Equipped with 10V/m anti-interference technology, it delivers superior performance compared to standard 3V/m models, with a valve lifespan of up to 1 million cycles. The highly sensitive sensor enables fast 0.2s activation and shut-off within 1 second, reducing water waste. It also features cold water failure protection, automatically shutting off the hot water valve in case of interruption to prevent scalding risks. The unit performs a 5-second automatic flush after 24 hours of inactivity to maintain hygiene. Available in both main power and battery versions, it adapts to different installation scenarios.
| Model No. | THMSTSB |
| Style | Manual Temperature Control |
| Body Mount | Deck Mount |
| Hole Size | Φ32~35 mm |
| Product Size | 188 mm |
| Body Material | SUS304 |
| Finish | Satin |
| Valve Core Type | Solenoid Valve Core |
| EMI Level | 10V/m |
| Power Supply Mode | Battery Power Supply |
| Sensor Mode | Single Function (Instant Flow Mode) |
| Temperature Control | Lever Handle, Manual Adjustable |
| Water Cutoff Protection | Yes |
| Waterproof Rating | IP68 |
| Nozzle Outlet Type | 1.19 GPM (4.5 LPM), Aerator (Neoperl Brand) |
| Sensing Distance Adjustment Range | 3cm to 20cm (Factory Default: 5cm to 18cm) |
| Nozzle Material | 65℃ (149°F) |
| Pressure Max | 2.5 Mpa (25 Bar) |
| Life Span of Valve Core | 1,000,000+ Cycles |
1. 100% food-grade SUS304
2. Lead-free / corrosion-resistant / durable / recyclable
3. Meets sustainable development standards
1. 0.2s sensor-activated water flow
2. Tested for over 1,000,000 switch cycles
1. 10V/m EMI-resistant (stronger than 3V/m in the market)
1. Smart sensor contactless, activates upon proximity and stops once move away
2. Contactless washing, effectively reduces the risk of cross-contamination
1. Equipped with a lever handle for easy and precise temperature adjustment
(Power Supply Mode Battery or Main Power Supply for Optional)
1. Powered by electricity: Fixed installations with power wiring
2. Battery powered: Flexible installations without power wiring
