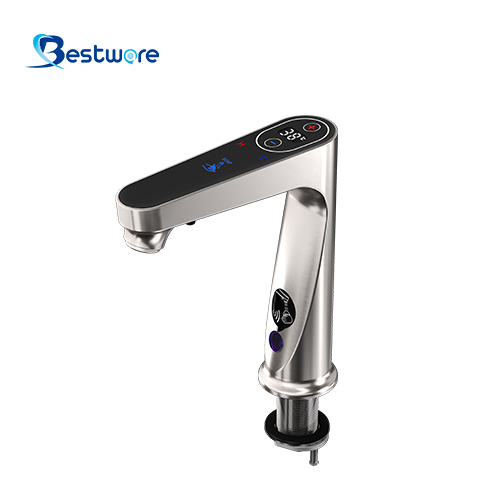

This intelligent sensor faucet integrates touchless handwashing and soap dispensing in a compact design, keeping countertops clean and organized. All water-contact components are made of lead-free 304 stainless steel. It is available in two finishes—brushed nickel and white nano-coated—paired with an anti-fingerprint digital glass panel for easy cleaning. Equipped with 10V/m anti-interference technology, it ensures stable performance in complex environments, outperforming standard 3V/m models. The high-sensitivity sensor enables fast 0.2s activation, while an integrated thermostatic system maintains precise temperature control within ±1°C (adjustable from 35–45°C), even under pressure fluctuations. The valve is tested for up to 1 million cycles. The built-in soap system offers two adjustable output levels and a low-level indicator. Safety features include automatic hot water shutoff if the cold supply fails, power-off shutoff, and automatic shutoff within 1 minute after accidental activation. The unit also performs a 5-second automatic flush after 24 hours of inactivity to maintain hygiene.
| Model No. | 2DHMSTM-S |
| Style | Intelligent Temperature Control with Soap |
| Body Mount | Deck Mount |
| Hole Size | Φ32~35 mm |
| Product Size | 207 mm |
| Body Material | SUS304 |
| Finish | Brushed |
| Valve Core Type | Solenoid Valve Core |
| EMI Level | 10V/m |
| Power Supply Mode | Main Power Supply |
| Sensor Mode | Single Function (Instant Flow Mode) |
| Temperature Control | Fingerprint-resistant Glass Panel, Intelligent Temperature Control |
| Temperature Adjustment | 35°C to 45°C (±1°C tolerance) |
| Water Cutoff Protection | Yes |
| Waterproof Rating | IP68 |
| Nozzle Outlet Type | 1.19 GPM (4.5 LPM), Aerator (Neoperl Brand) |
| Sensing Distance Adjustment Range | 3cm to 20cm (Factory Default: 5cm to 18cm) |
| Nozzle Material | 65℃ (149°F) |
| Pressure Max | 2.5 Mpa (25 Bar) |
| Life Span of Valve Core | 1,000,000+ Cycles |
1. 100% food-grade SUS304 (wetted parts)
2. Lead-free / corrosion-resistant / durable / recyclable
3. Meets sustainable development standards
1. 0.2s sensor-activated water flow
2. Tested for over 1,000,000 switch cycles
1. 10V/m EMI-resistant (stronger than 3V/m in the market)
1. Smart sensor contactless, activates upon proximity and stops once move away
2. Contactless washing, effectively reduces the risk of cross-contamination
1. The fingerprint-resistant glass panel adjusts temperature from 35°C to 45°C (±1°C tolerance). After 30 seconds of inactivity, it automatically resets to 38°C (factory default setting for optimal comfort)
(Enables full cold or full hot water settings)
1. Full Cold Mode: Place the key on the panel for 10 seconds to disable hot water, ensuring cold water only.
2.Full Hot Water Mode: Hold the key on the panel to activate, and after removing it, the faucet runs for 10 seconds to drain hot water, then automatically returns to the default temperature of 38°C
1. Two-level output adjustable
2. Red flashing when soap is low
