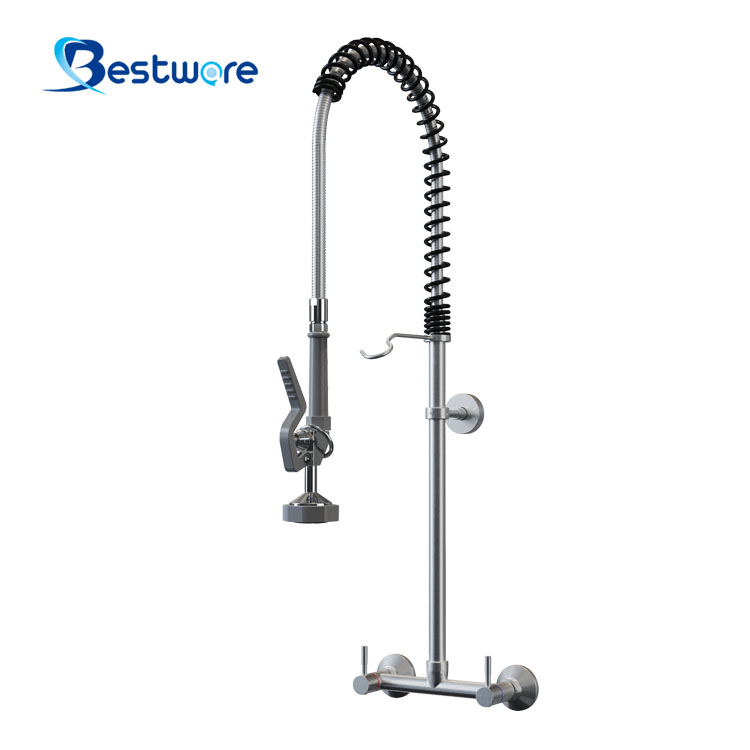

This model is a cost-effective pre-rinse faucet from Bestware, designed for customers who prioritize value and are price-sensitive. It combines the advantages of stainless steel with the affordability of brass, offering an accessible yet reliable option. In terms of materials, the spray valve and hose connectors are brass, while approximately 85% of the faucet is stainless steel (70% SUS304 and 15% SUS201 for the overhead spring guard). Functionally, the spray valve has a single washing mode, and only one end of the hose connector can rotate. The overall material thickness is slightly reduced compared to other pre-rinse series products, making it less robust, but it still provides excellent durability and ergonomic design for its price, delivering one of the highest value propositions in the industry.
| Model No. | ECW100 |
| Style | Economy Classic Style |
| Body Mount | Dual Holes Wall Mount |
| Hole Size | G1/2, Hole-to-hole Dimension 8"(203.2mm) |
| Height | 1043 mm |
| Spray Valve | Brass Single-function |
| Spray Valve Flow Mode | Model No.: BWSG-BRS Basic Washing Only |
| Body Material | SUS304 |
| Valve Core | Fast-opening Ceramic |
| Hose | Single 360° Rotating Brass Connector (925 mm), SUS304 Outer Casing, EPDM Inner Tube |
| Overhead Spring | SUS201 with Black Plating |
| Add-on Swing Nozzle | No |
| Handle | SUS304 Simple Lever Handle |
| Temperature Control | Dual-handles Dual-control Hot and Cold Adjustment |
| Riser Material | SUS304 |
| Spray Valve Hold Down Ring Material | SUS304 |
| Spray Valve Finger Hook Material | SUS304 |
| Wall Bracket | Yes |
| Wall Bracket Adjustable Range | 325 mm |
| Check Valve Function | No, Optional Upgrade Available |
| Temperature Max | 95℃(203°F) |
| Pressure Max | 2.5 Mpa (25 Bar) |
| Life Span of Valve Core | 200,000+ Cycles |
| Life Span of Spray Valve | 200,000+ Cycles |
1. Single function for basic washing
1. High-temperature and high-pressure resistant EPDM inner tube and stainless steel outer casing, withstands 95°C
2. Brass single 360° rotating connector with stainless steel overhead spring
3. Pull-resistance up to 155 kgs
4. Over 200,000 rotation cycles
1. 80% food-grade SUS304
2. Colorful and stylish / lead-free / corrosion-resistant / recyclable
1. Fast-opening ceramic valve core
2. Tested for over 200,000 switch cycles
