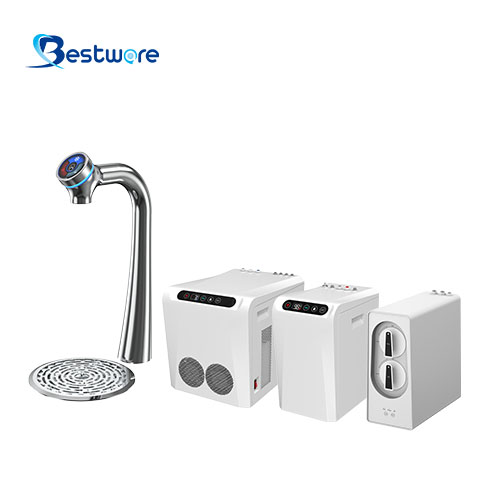

This commercial water dispenser is the result of Bestware’s three years of craftsmanship, featuring 3-in-1 functionality—hot, chilled, and ambient water—to meet diverse drinking needs across various settings. With flow rates up to 40 L/h for chilled water and 18 L/h for hot water, it easily handles peak demand, reducing wait times and improving service efficiency. Designed for enhanced user experience, it features a 1.5-inch OLED HD display, wide temperature adjustment range, and an ergonomically designed interface with large buttons for intuitive and comfortable operation. In terms of hygiene and safety, UV sterilization combined with RO triple filtration ensures higher water purity, while anti-scald design, water-level detection, and intelligent temperature control provide safe and stable operation. Three energy-saving modes and 100% steam recovery help reduce operating costs. Overall, with comprehensive functionality, strong performance, and user-friendly design, it is an ideal choice for commercial environments.
| Model No. | G3DS-1024 |
| Style | 3 in 1 |
| Function | 3 in 1 (Chilled/Hot/Ambient Water) |
| Tap Size (Tap+Drip Tray) (W x D x H) | 158x223x332 mm |
| Tap Body Material | SUS304 plasma mirror polishing (unplated) |
| Tap Animated Display Screen | 1.5-inch OLED intelligent control, high-definition display rotary knob |
| Tap Communication Interface | Shares with chilling unit and heating unit |
| Chilling Unit Machine Size | 355x464x438 mm |
| Chilling Power Rating | 420 W |
| Chilling Unit Supply Voltage | 110 V/60Hz or 220 V/50Hz |
| Chilling Unit Water Pressure Range | 0.15 MPa~0.6 MPa |
| Chilling Capacity | 40 L/h, ＝ 200 cups/h (200 ml/cup) |
| Chilling Unit Adjustable Temperature Range | 0℃~8℃ |
| Chilling Unit Inlet/Outlet Water Pipe Connection | ¼" PE |
| Chilling Unit Communication Interface | Shares with heating unit and faucet |
| Chilling Unit UV Sterilization | External |
| Heating Unit Machine Size | 230x322x438 mm |
| Heating Unit Supply Voltage | 110 V/60Hz or 220 V/50Hz |
| Heating Unit Water Pressure Range | 0.15 MPa~0.6 MPa |
| Heating Power Rating | 1200 W (110 V) / 1500 W (220 V) |
| Heating Capacity | Single continuous dispensing (≈4 L) at 90°C+, 18 L/h, ≈ 120 cups/h (150 ml/cup) |
| Heating Unit Adjustable Temperature Range | 45℃~98℃ |
| Heating Unit High-pressure Relief Port | Yes |
| Heating Unit Inlet/Outlet Water Pipe Connection | ¼" PE |
| Heating Unit Communication Interface | Shares with chilling unit and faucet |
| Heating Unit UV Sterilization | External |
| Heating Unit Dry Burn Protection | Yes |
| Heating Unit Anti-scald | Yes |
| RO Filtration Unit | Yes |
| RO Filtration Unit RO Filter Cartridge Lifepan (1000G) | 24 months or 8000 L |
| RO Filtration Unit PAC Composite Filter Cartridge Lifepan | 12 months or 4000 L |
| RO Filtration Unit Water Flow | 2.6L/min |
| RO Filtration Unit Replacement Reminder | Yes, indicator light flashes to signal replacement |
| Hole Size for Tap | Φ32~35 mm |
| Drip Tray Hole Size for Tap | Hole Size Φ130 mm，3×Φ8 mm |
| Max Counter Thickness for Tap | ≤40 mm (customizable to extra thickness) |
| Minimum Base Cabinet Size for Units (W x D x H) | 990x500x630 mm |
1. 3-in-1 functionality: hot, chilled and ambient water
2. Customizable 4-in-1 or 2-in-1 configurations
1. Independent three-pipeline structure keeps each water type separate, ensuring pure taste without cross-contamination
1. Chilled water: 40 L/h (<10°C); hot water: 18 L/h (>90°C)
2. 4× chilling capacity meets commercial peak demand
3. Single-serving output: hot 4 L, chilled 1 L
1. 1.5-inch OLED HD animated display for intuitive operation
2. High-flow design meets peak demand, reducing waiting time and improving service efficiency
3. Adjustable temperature: chilled 0–8°C, hot 45–98°C, suitable for multiple scenarios
4. Adjustable dispensing time: 1–60 s for different cup sizes
5. Enlarged buttons for easy operation
6. 45° ergonomic viewing angle for convenient maintenance without bending
7. Neoperl aerator ensures smooth, splash-free water flow
8. Drip tray with large drainage holes for fast drainage, no water accumulation
